Heavy Duty Galvanised BOLT DOWN POST SUPPORT Fence Foot Pergola Anchor 3 Sizes
Heavy Duty Galvanised BOLT DOWN POST SUPPORT Fence Foot Pergola Anchor 3 Sizes
Regular price
£9.97 GBP
Regular price
Sale price
£9.97 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Heavy Duty Galvanised BOLT DOWN POST SUPPORT Fence Foot Pergola Anchor 3 Sizes
- Galvanised Steel Post Support
Sizes the same for all 3:
- Height: 250 mm (10")
- Plates Thickness: 3mm
- Vertical Bar Size - M20
- Two nuts included
- Holes: 12mm
- Bearing: 40.80 kN - 4078 kg
- 3 Sizes to chose from:
We recommend bolting down bolt post support with our CE certified Anchor Bolts to ensure 100% professional installation.
- Set of fixings will also include Coach Screws, which not only will provide you with a pleasantly looking finish but will also allow you to firmly attach the post bracket to your timber post.

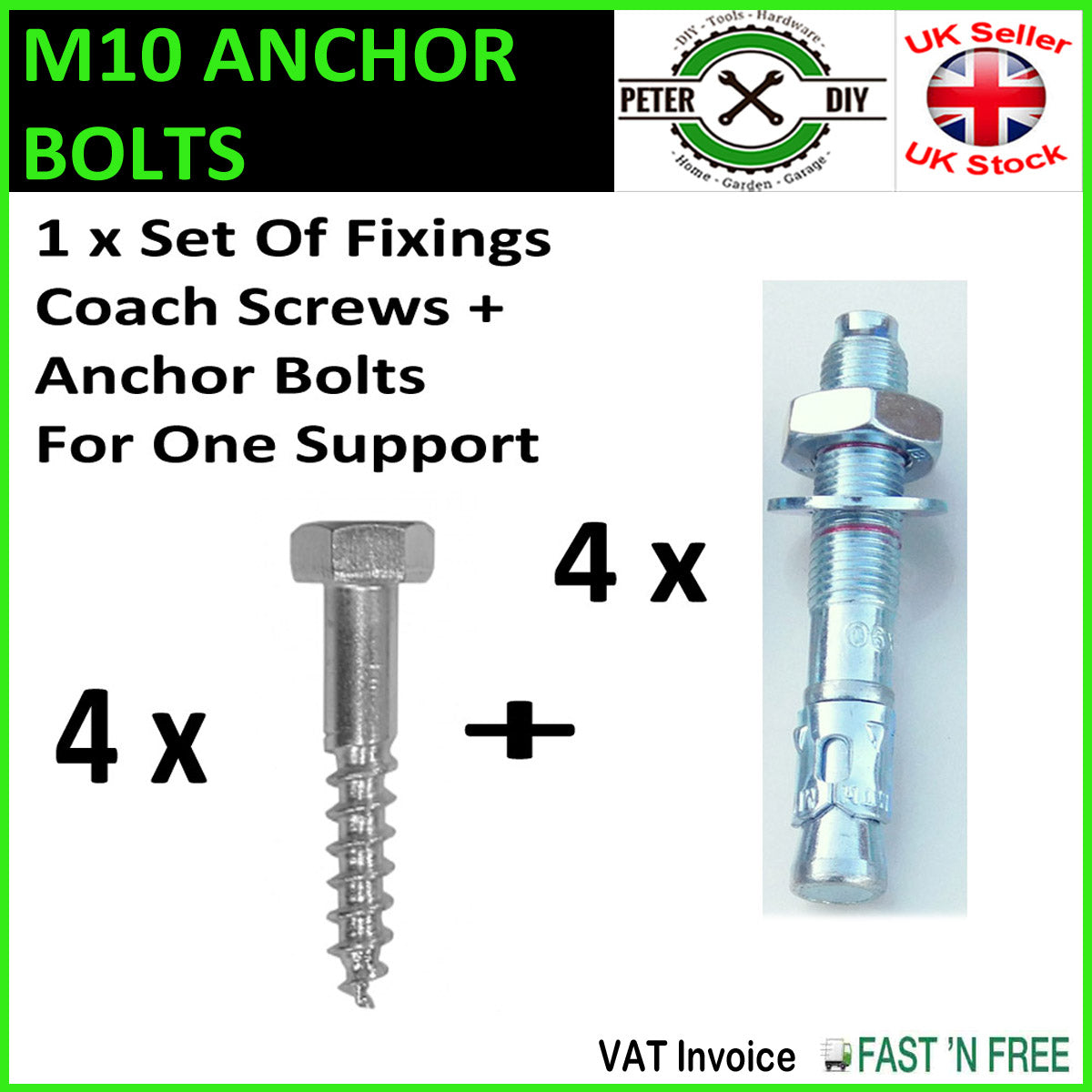

- Set of WOOD Fixings includes:
4 x Timber Coach Screws
- Set of BOLT DOWN Fixings includes:
4 x CONCRETE ANCHORS
- Set of WOOD+BOLT DOWN Fixings includes:
4 x Timber Coach Screws +
4 x CONCRETE ANCHORS
You will need ONE SET of fixings for each post support you buy.
For Example:
If you buy 4 supports , you will need to purchase 4 sets of fixings.
- Application: It facilitates fixing of the wooden elements with concrete, assures appropriate separation between wood and substrate.
- Material: S235 + silver galvanization
- HOT-GALVANIZED ZINC: Coat applied by immersing the object in melted zinc heated up to the temperature of about 450 C. Obtained thickness of coating amounts to 80-90 um, no less than 60 um. Such a thick layer protection is recommended for products exposed to long-lasting influence of moisture, particularly for products to be used in a garden. Such coating may be covered with decorative paints suitable for galvanized (zinc-coated) surfaces.
- Made by professionals for professionals
- Premium quality, modern design, good handling & competitive price
- Galvanised Steel Post Support
Sizes the same for all 3:
- Height: 250 mm (10")
- Plates Thickness: 3mm
- Vertical Bar Size - M20
- Two nuts included
- Holes: 12mm
- Bearing: 40.80 kN - 4078 kg
- 3 Sizes to chose from:
| Top Plate Size (mm) | Top Plate Size (inches) | Bottom Plate Size (mm) | Bottom Plate Size (inches) |
|---|---|---|---|
| 80 x 80 mm | 3.1 x 3.1" | 80 x 140 mm | 3.1 x 5.5" |
| 100 x 100 mm | 4 x 4" | 100 x 160 mm | 4 x 6.3" |
| 130 x 130 mm | 5.1 x 5.1" | 130 x 200 mm | 5.1 x 7.9" |
We recommend bolting down bolt post support with our CE certified Anchor Bolts to ensure 100% professional installation.
- Set of fixings will also include Coach Screws, which not only will provide you with a pleasantly looking finish but will also allow you to firmly attach the post bracket to your timber post.
- Set of WOOD Fixings includes:
4 x Timber Coach Screws
- Set of BOLT DOWN Fixings includes:
4 x CONCRETE ANCHORS
- Set of WOOD+BOLT DOWN Fixings includes:
4 x Timber Coach Screws +
4 x CONCRETE ANCHORS
You will need ONE SET of fixings for each post support you buy.
For Example:
If you buy 4 supports , you will need to purchase 4 sets of fixings.
- Application: It facilitates fixing of the wooden elements with concrete, assures appropriate separation between wood and substrate.
- Material: S235 + silver galvanization
- HOT-GALVANIZED ZINC: Coat applied by immersing the object in melted zinc heated up to the temperature of about 450 C. Obtained thickness of coating amounts to 80-90 um, no less than 60 um. Such a thick layer protection is recommended for products exposed to long-lasting influence of moisture, particularly for products to be used in a garden. Such coating may be covered with decorative paints suitable for galvanized (zinc-coated) surfaces.
- Made by professionals for professionals
- Premium quality, modern design, good handling & competitive price
