Heavy Duty Galvanised Bolt Down SQUARE POST SUPPORT Fence Foot Base 72-202mm
- Holes: 11 mm

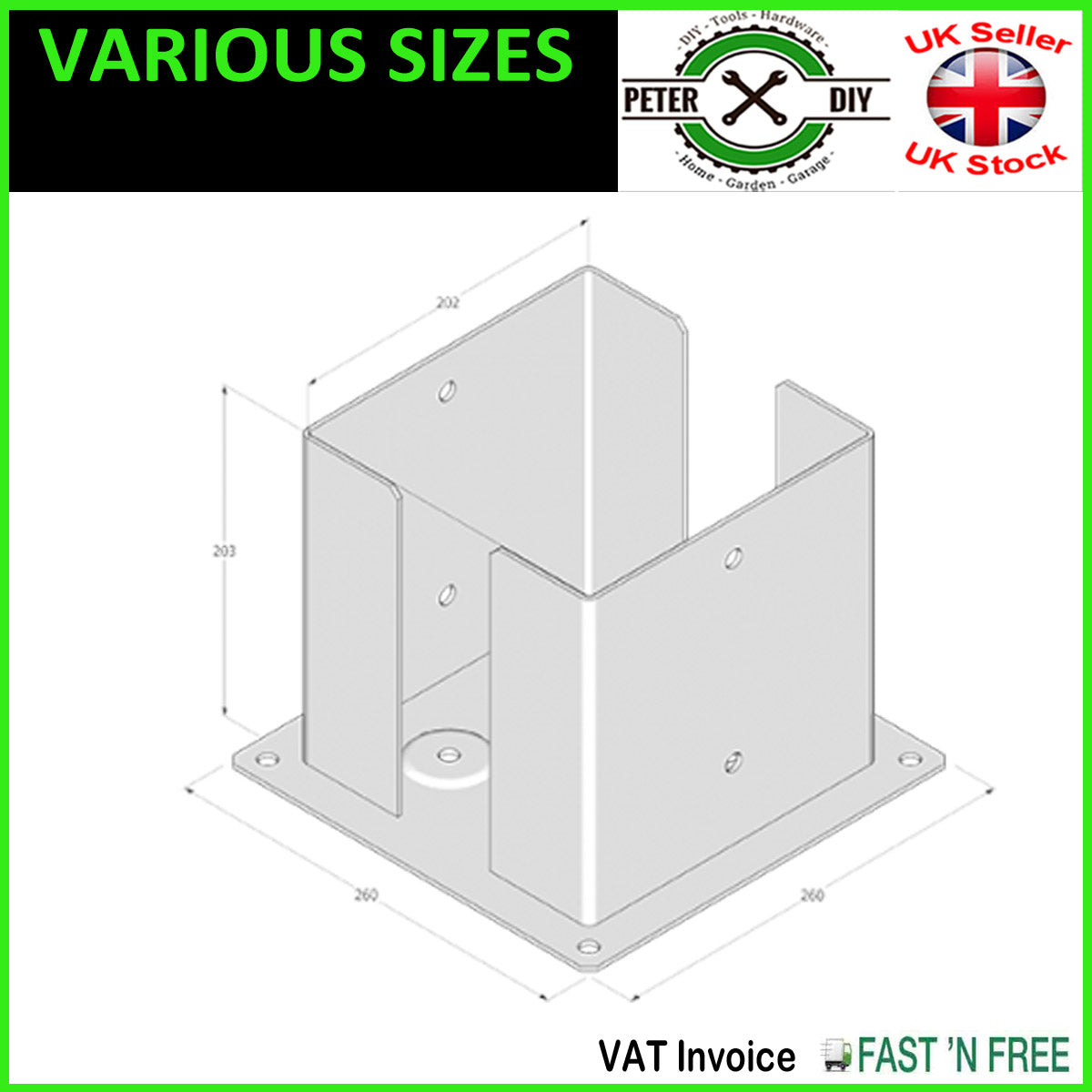

- 8 Sizes:
| Internal Size |
Height |
Base Size |
Thickness |
| 72 x 72 mm (2.8 x 2.8") square |
152mm (6") |
150 x 150mm (6x6") |
2mm |
| 92 x 92 mm (3.6 x 3.6") square |
152mm (6") |
150 x 150mm (6x6") |
2mm |
| 102 x 102 mm (4 x 4") square |
152mm (6") |
180 x 180mm (7x7") |
2.5mm |
| 122 x 122 mm (4.8 x 4.8") square |
152mm (6") |
180 x 180mm (7x7") |
2.5mm |
| 142 x 142 mm (5.6 x 5.6") square |
203mm (8") |
220 x 220mm (8.5x8.5") |
3mm |
| 152 x 152 mm (6 x 6") square |
203mm (8") |
220 x 220mm (8.5x8.5") |
3mm |
| 162 x 162 mm (6.4 x 6.4") square |
203mm (8") |
220 x 220mm (8.5x8.5") |
3mm |
| 202 x 202 mm (8 x 8") square |
203mm (8") |
260 x 260mm (10x10") |
3mm |
- We recommend bolting down bolt post support with our Anchor Bolts to ensure 100% professional installation.
- Set of fixings will also include Torx Timber Screws, which not only will provide you with a pleasantly looking finish but will also allow you to firmly attach the post bracket to your timber post.

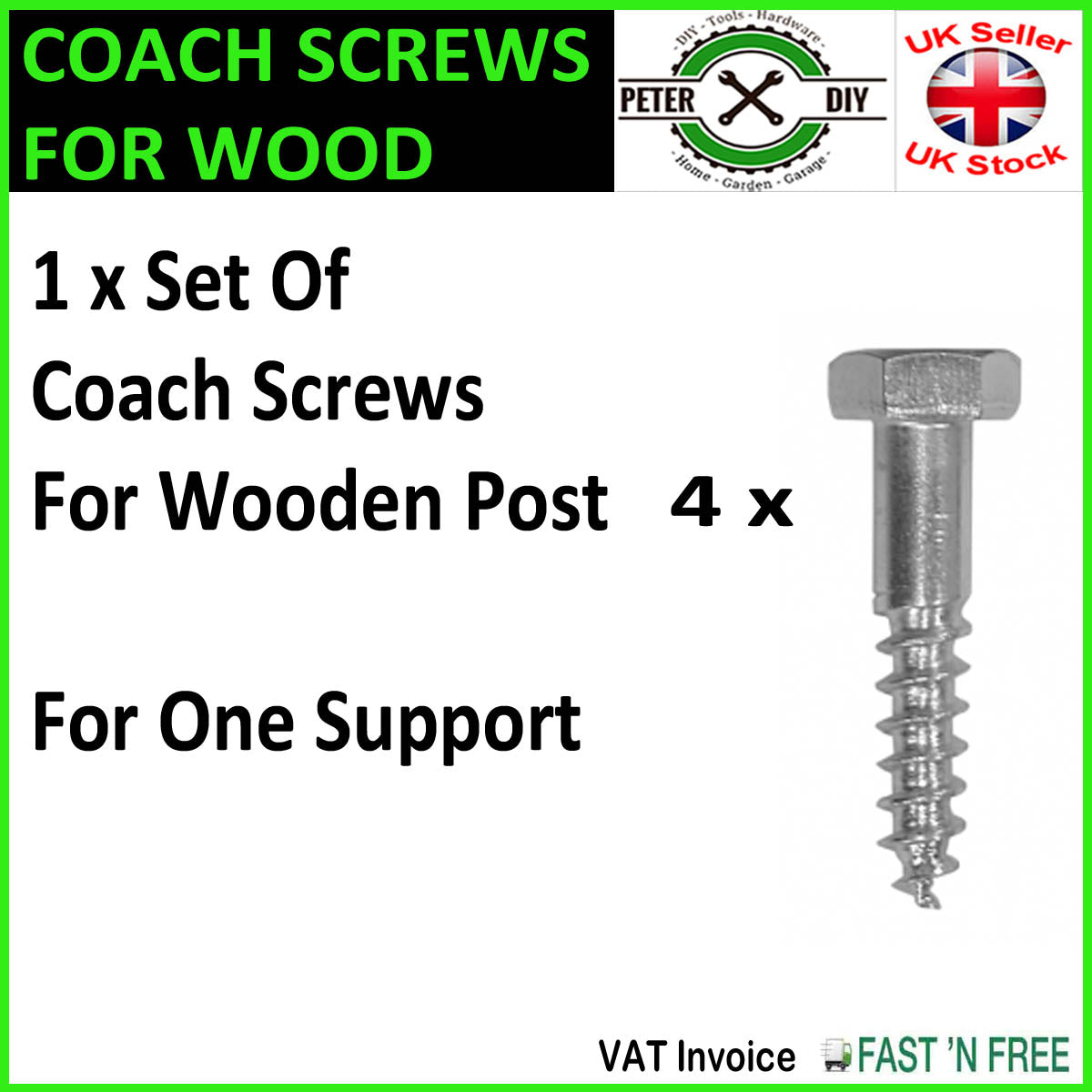

- Set of SIDE Fixings includes:
4 x Timber Torx Screws

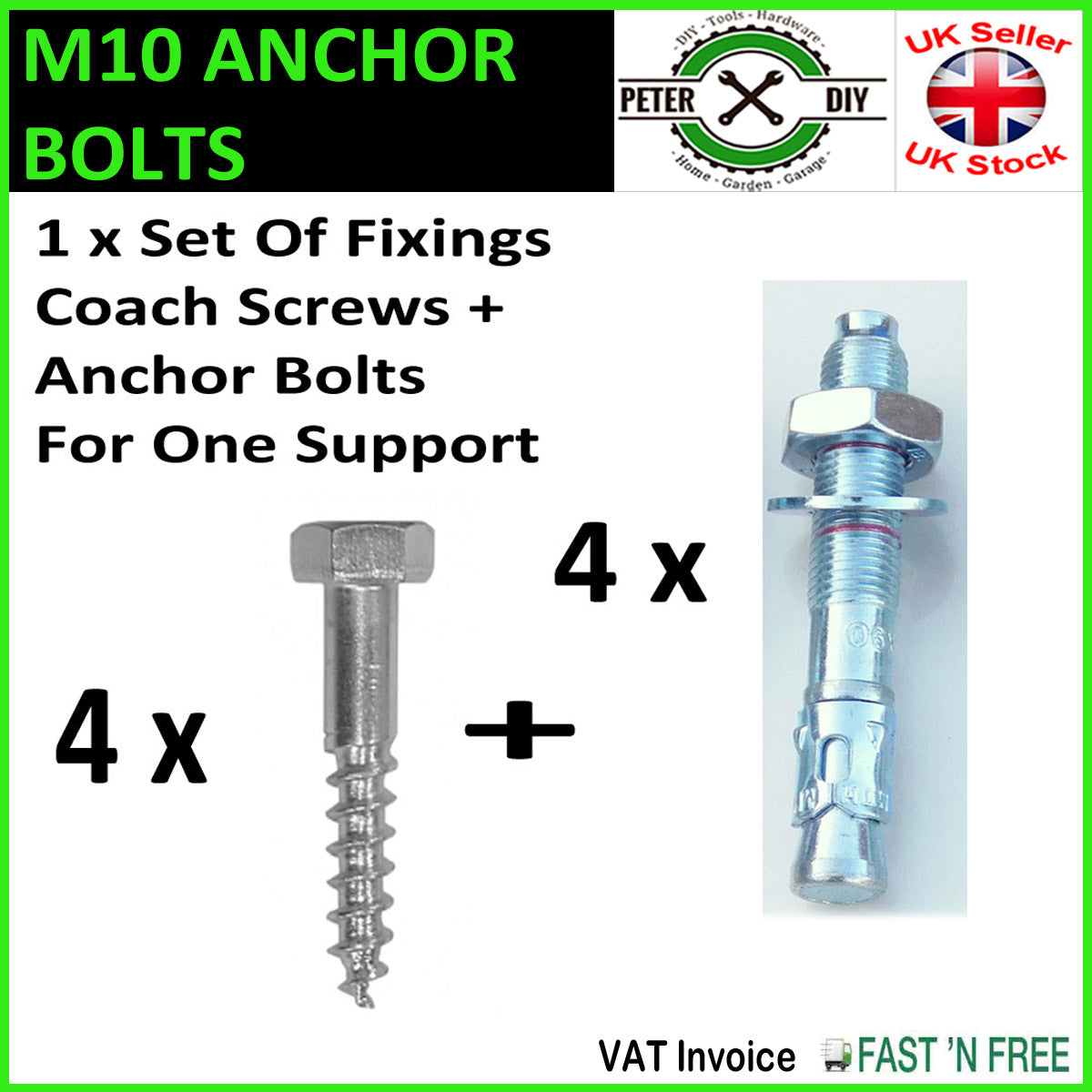

- Set of BOLT DOWN Fixings includes:
4 x CONCRETE ANCHORS
- Set of SIDE+BOLT DOWN Fixings includes:
4 x Timber Torx Screws +
4 x CONCRETE ANCHORS
You will need ONE SET of fixings for each post support you buy.
For Example:
If you buy 4 supports , you will need to purchase 4 sets of fixings.
- Material: S235 + silver galvanization
- HOT-GALVANIZED ZINC: Coat applied by immersing the object in melted zinc heated up to the temperature of about 450 C. Obtained thickness of coating amounts to 80-90 um, no less than 60 um. Such a thick layer protection is recommended for products exposed to long-lasting influence of moisture, particularly for products to be used in a garden. Such coating may be covered with decorative paints suitable for galvanized (zinc-coated) surfaces.
- Made by professionals for professionals
- Premium quality, modern design, good handling & competitive price
