ANGLE BRACKET 2mm Thick HEAVY DUTY Corner Reinforced Galvanised Zinc Plated
ANGLE BRACKET 2mm Thick HEAVY DUTY Corner Reinforced Galvanised Zinc Plated
Regular price
£3.77 GBP
Regular price
Sale price
£3.77 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
ANGLE BRACKET 2mm Thick HEAVY DUTY Corner Reinforced Galvanised Zinc Plated
- Galvanised Metal Corner Brace 90 Degree Angle Bracket
- Width Size: 35, 45, 55, 65 or 90 mm
- Size : 50x50, 60x60, 70x70, 90x50, 90x90 or 105x105 mm
- Thickness: 2 mm
- Holes: 5, 7 and 11 mm
- 6 Sizes:
- Application:
They are specified by resignation from traditional perforating systems and adapting to Eurocode requirements, where one of the most important things is keeping minimum spans and distances between nails. They are fitted with a wide range of perforating systems which enable them to be used in standard solutions as well as for custom-made joints. KPL squares are made of thinner material which is a result of works intended to achieve better compromise between price and strength
- Material: DX51D + Z275. Thickness: 2,0mm.
- Fixing: Carpentry nails ANCHOR 4mm; screws for timber 6mm, 10mm; bolts M10, M12; concrete anchors M10, M12.
- Anti-corrosion protection:
Cold-rolled metal sheet with bilaterally applied galvanized coating with weight no less than 275 g/m2 and thickness of about 20 um. Most often it is additionally covered with a thin layer of oil film that protects zinc against oxidation. Product edges remain not coated after punching process, but it has no negative influence on their anti-corrosion protection.
- 24h Royal Mail Postage Class Available
- Made by professionals for professionals
- Premium quality, modern design, good handling & competitive price
- VAT invoice with every order
- Galvanised Metal Corner Brace 90 Degree Angle Bracket
- Width Size: 35, 45, 55, 65 or 90 mm
- Size : 50x50, 60x60, 70x70, 90x50, 90x90 or 105x105 mm
- Thickness: 2 mm
- Holes: 5, 7 and 11 mm
- 6 Sizes:

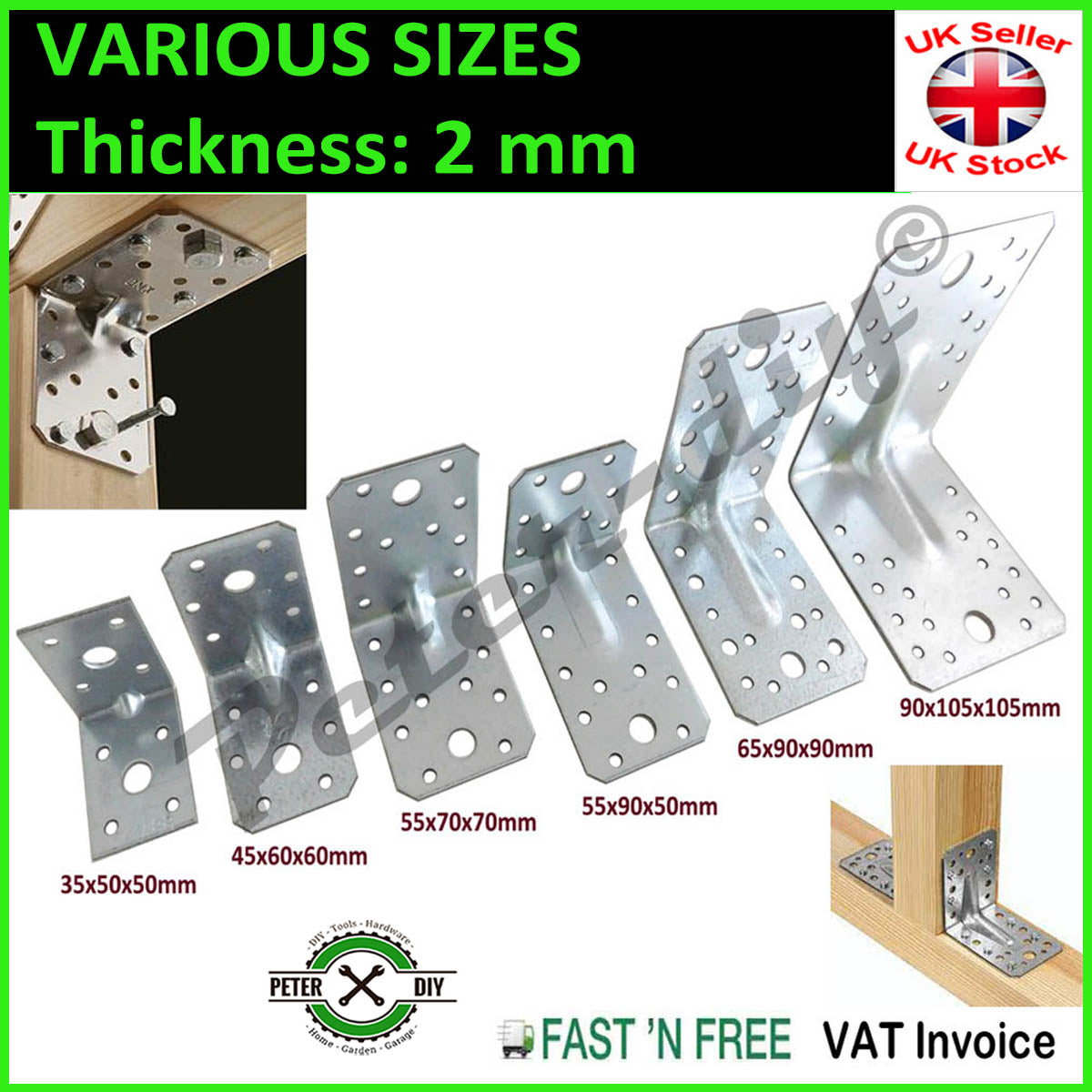

| Width | Side Length | Bearing Capacity |
|---|---|---|

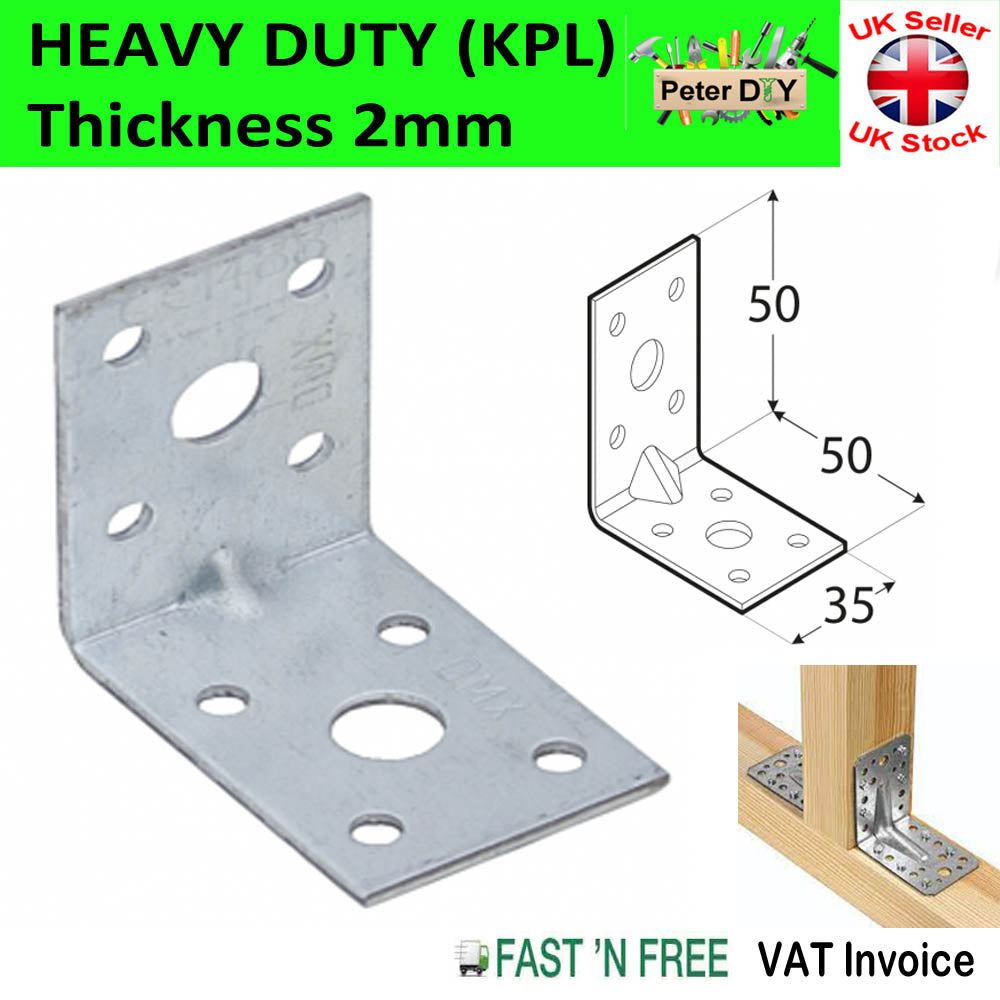

| 35mm (1.4") | 50x50mm (2x2") | 6.8 kN |
| 45mm (1.8") | 60x60mm (2.4x2.4") | 6.2 kN |

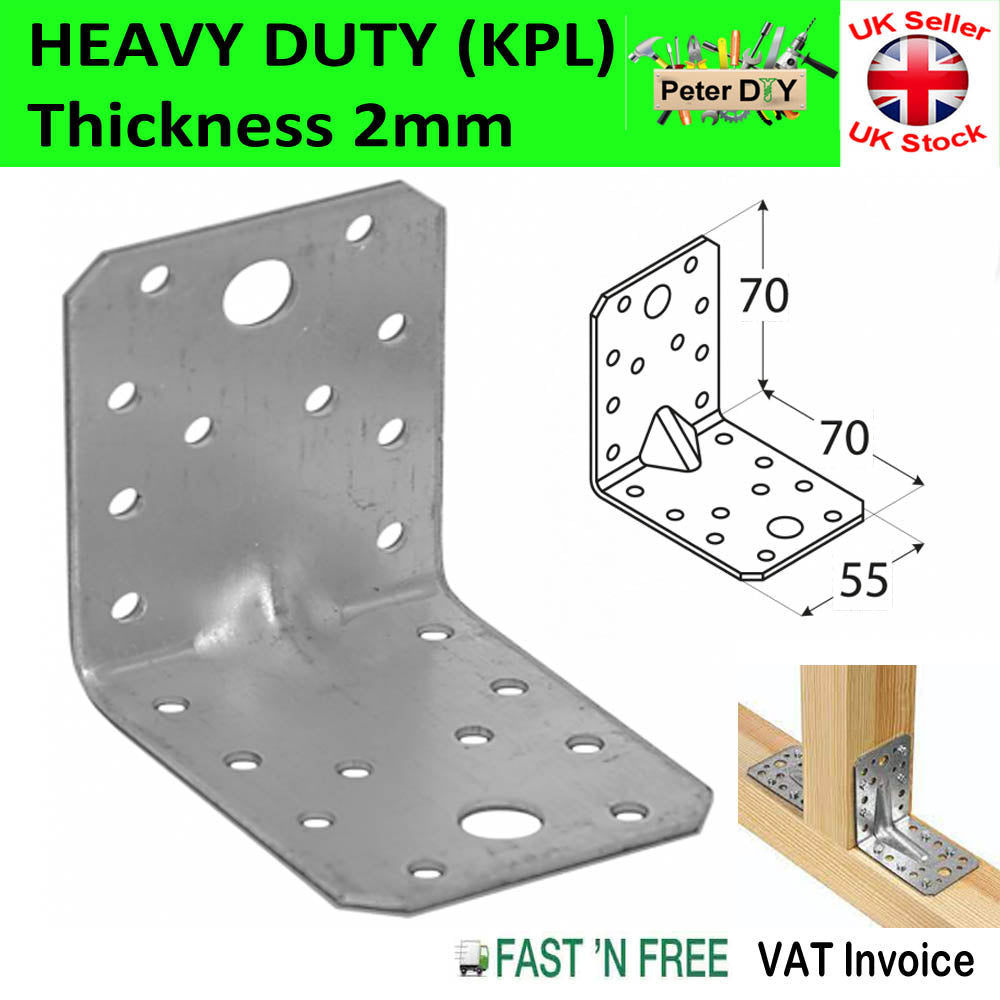

| 55mm (2.2") | 70x70mm (2.8x2.8") | 10.45 kN |

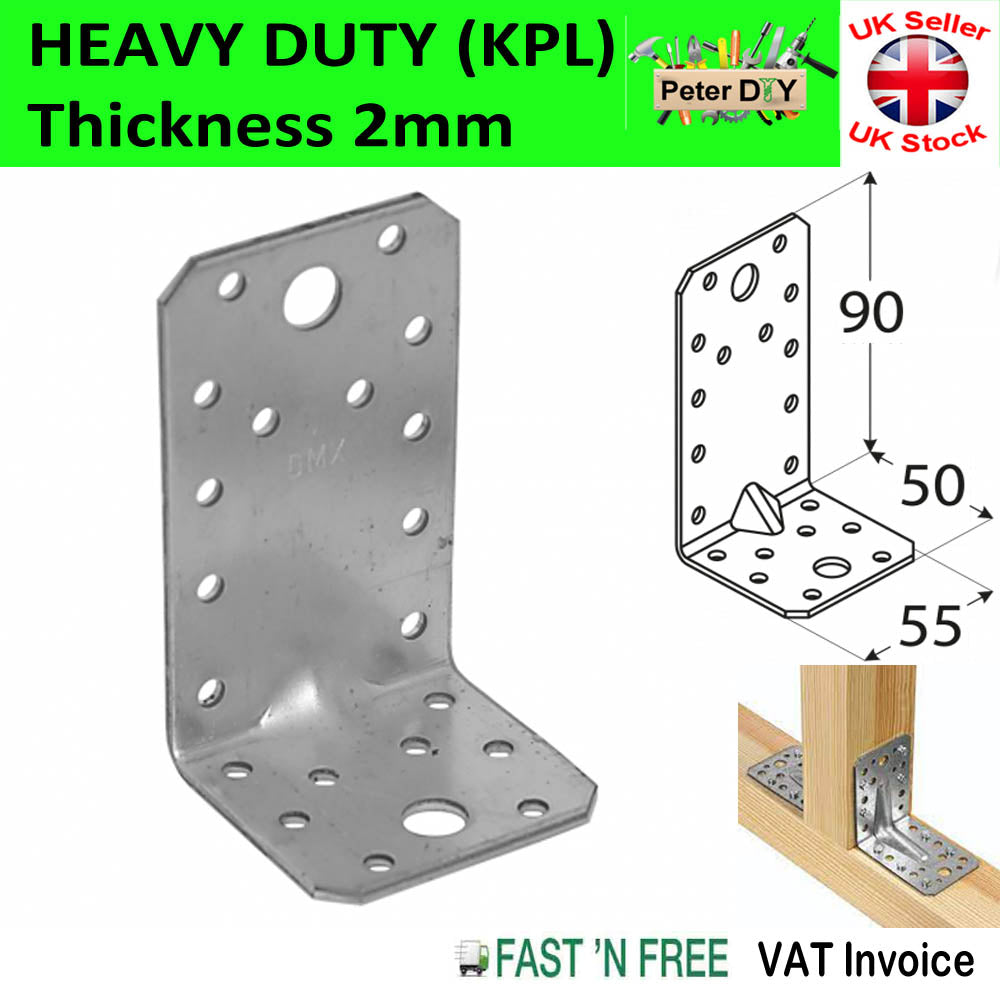

| 55mm (2.2") | 90x50mm (3.5x2") | 14.35 kN |

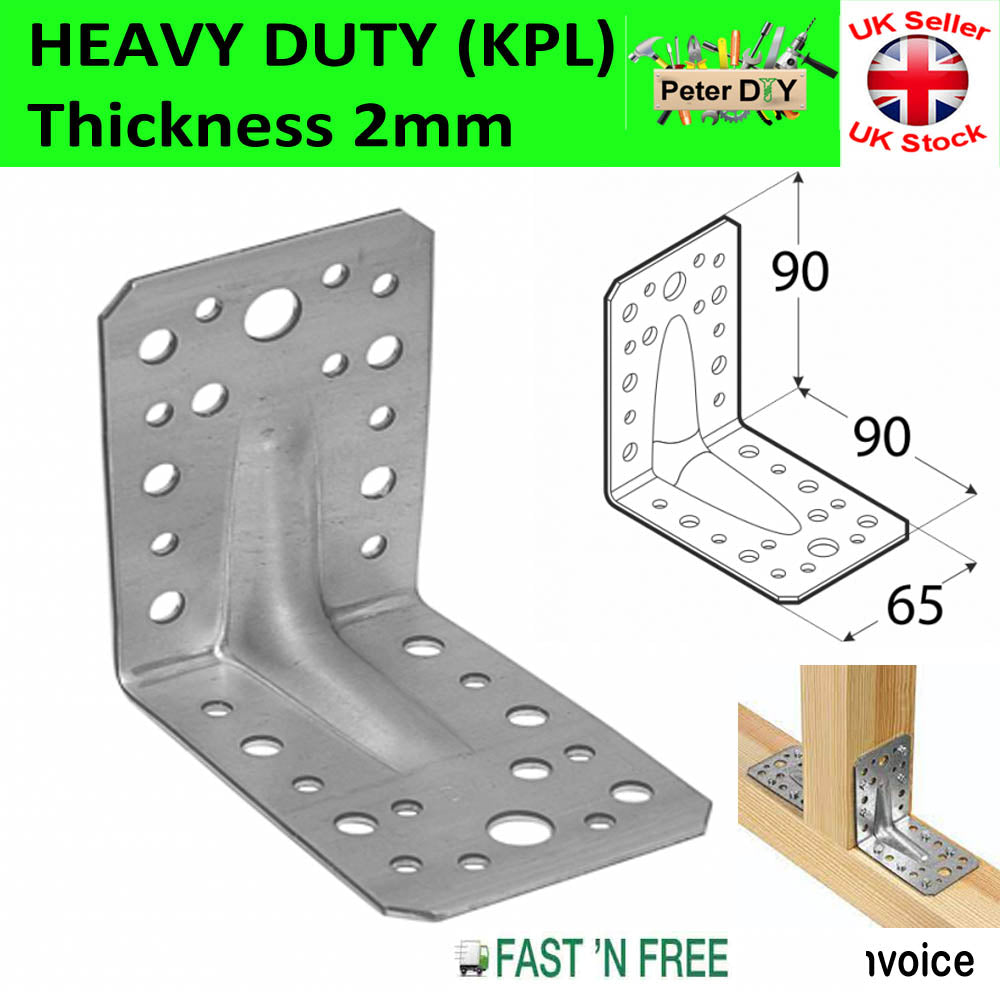

| 65mm (2.6") | 90x90mm (3.5x3.5") | 17.8 kN |

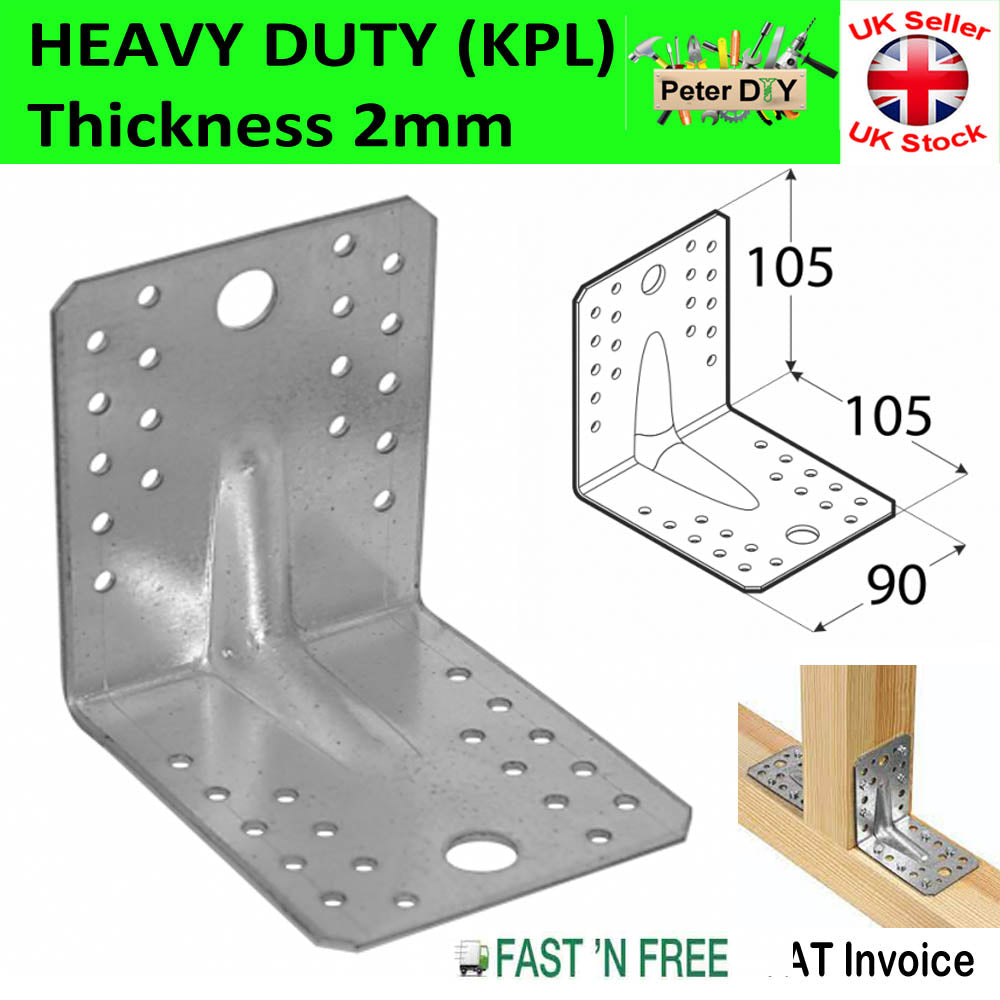

| 90mm (3.5") | 105x105mm (4.1x4.1") | 21.9 kN |
- Application:
They are specified by resignation from traditional perforating systems and adapting to Eurocode requirements, where one of the most important things is keeping minimum spans and distances between nails. They are fitted with a wide range of perforating systems which enable them to be used in standard solutions as well as for custom-made joints. KPL squares are made of thinner material which is a result of works intended to achieve better compromise between price and strength
- Material: DX51D + Z275. Thickness: 2,0mm.
- Fixing: Carpentry nails ANCHOR 4mm; screws for timber 6mm, 10mm; bolts M10, M12; concrete anchors M10, M12.
- Anti-corrosion protection:
Cold-rolled metal sheet with bilaterally applied galvanized coating with weight no less than 275 g/m2 and thickness of about 20 um. Most often it is additionally covered with a thin layer of oil film that protects zinc against oxidation. Product edges remain not coated after punching process, but it has no negative influence on their anti-corrosion protection.
- 24h Royal Mail Postage Class Available
- Made by professionals for professionals
- Premium quality, modern design, good handling & competitive price
- VAT invoice with every order
- Please see our related items in "Angle Brackets" category:
